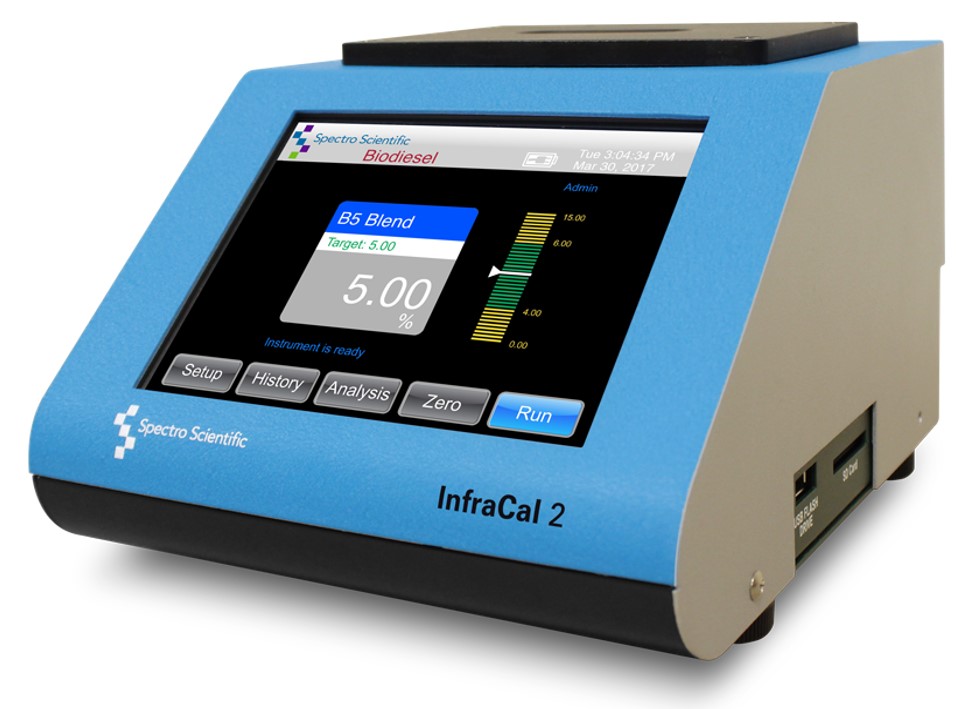

InfraCal 2 ATR-B - Biodiesel In Diesel Analyzer

Request Free Quote

The InfraCal 2 Biodiesel Blend Analyzer for measuring percent biodiesel in diesel is the ideal solution where a quick, accurate, on-site measurement is required and a single, repetitive biodiesel blend analysis is needed.

Overview of the InfraCal 2 Biodiesel Analyzer

  • Features
  • Specifications
  • Application
  • Acessories
  • Consumables
  • Download
  • Ordering

Highlights

Principle of Operation Samples are applied to a zinc selenide (ZnSe) attenuated total reflectance (ATR) sample plate. Infrared light from a source bounces multiple times between the top and bottom surfaces of ZnSe crystal as it travels horizontally from one side to the other. It is then filtered and measured by the detector. The loss of the light at a specific wavelength is due to the absorption by the fuel sample on the top plate and it is then calculated to percentage of biodiesel or ethanol based on calibration

  Benefits

  Features

Internal Data Storage

Data storage including each measurement tagged with analyst, location and date/time information, and password protected instrument settings

Export

Directly to your PC via USB or a Flash Drive

Touch Screen Display

The touch screen display allows a simple set up for quick operation along with an easy calibration wizard.

Internal Battery

 The internal battery pack allows for portability and up to 6 hours continuous use.
Multi-Language Interface

English, Spanish, French, Arabic

Password Protected Settings

Calibration and data are password protected to avoid accidental deletion

No need for Installation/Commissioning

 The InfraCal 2 is a portable analyzer, weighing less than 5 lbs. with a 6 in. square foot print, requiring no installation or commissioning, little to no routine maintenance or recalibration.

Minimal Consumables

 The analysis requires little to no consumables making the cost-per-test minimal.

The InfraCal 2 Biodiesel Blend Analyzer for measuring percent biodiesel in diesel is the ideal solution where a quick, accurate, on-site measurement is required and a single, repetitive biodiesel blend analysis is needed. The InfraCal 2 ATR-B is based on proven IR technology, originally developed by Wilks, and used by fuel distributors, blenders, producers and regulatory agencies worldwide.  The compact, easy-to-use Biodiesel Blend Analyzer has a measurement range of 0 – 100% biodiesel in diesel. These results are comparable to both ASTM D7371 and EN 14078, laboratory methods that require expensive FTIR Spectrometers.

Samples are applied to a zinc selenide attenuated total reflectance (ATR) sample plate for immediate results. The analysis can be done by non-technical personnel with no formal training and is ideal for lab or field use. The InfraCal2 ATR-B has a touch screen display, internal data storage and transfer, a multi-language interface and password protected settings.  The internal battery pack allows for portability and up to 6 hours continuous use, providing results in under a minute at a fuel loading rack, in a laboratory or at a pump in a fueling station.

  • Measurement range: 0 - 100% biodiesel
  • Instrument repeatability: 0 – 30% +/- 0.2% ; 30-100% +/-1.0%
  • Compares to ASTM D7371 & EN 14078

MEASURING PERCENT BIODIESEL IN DIESEL OR ETHANOL IN GASOLINE

 403-0013                      Carrying case for InfraCal Analyzers with pre-diced pluck foam. 18.5” x 14.6” x 8”; 10 lbs

403-1086                       Dust cover

Dimensions

(17 cm) x 7.8" (19.8 cm) x 5.2" (13.2 cm)
