Highlights

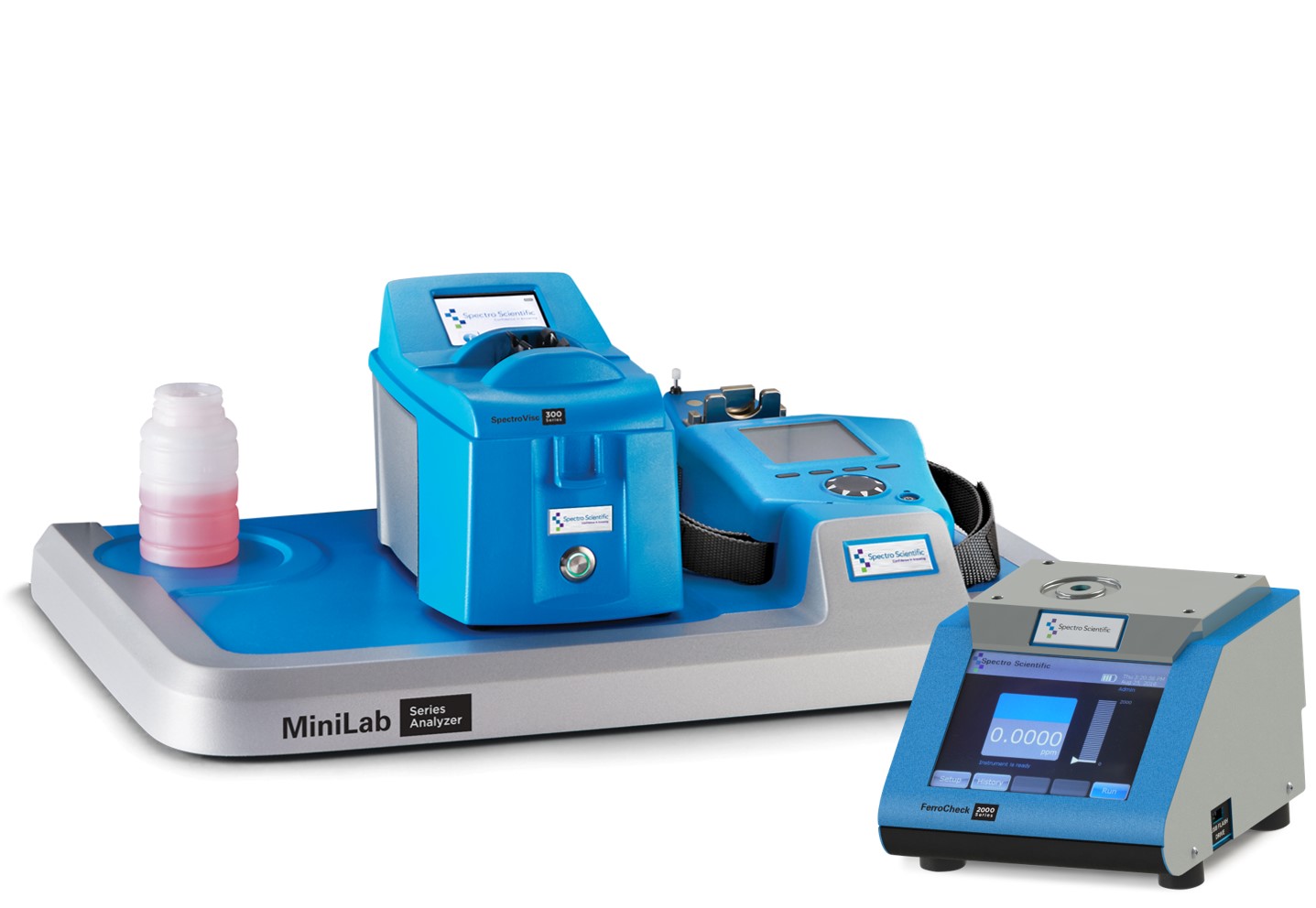

The MiniLab 33 provides oil condition information including viscosity,chemistry,water and total ferrous wear measurement of normal and abnormal ferrous wear.
Trivector™ – oil and machine health simplified
The TriVector™ is a simple representation of the integrity of the lubrication system and the health of the machine itself. The Trivector indicates the degree of health in each vector. In order to understand the Trivector condition, one must measure the key physical and chemical parameters of the oil.

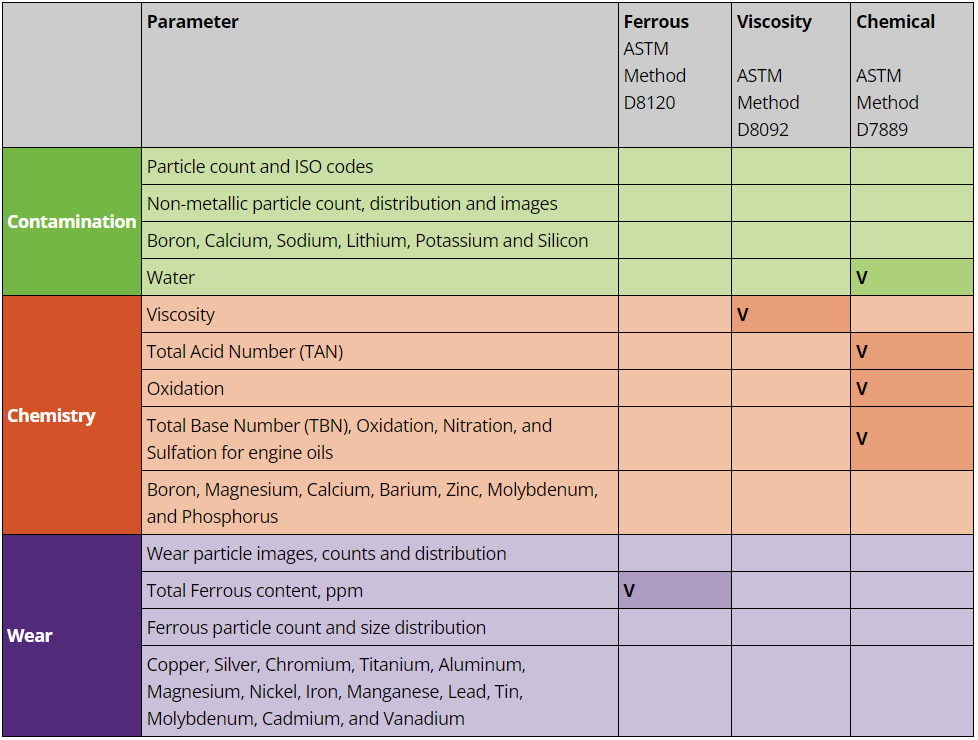

The following questions can be answered:

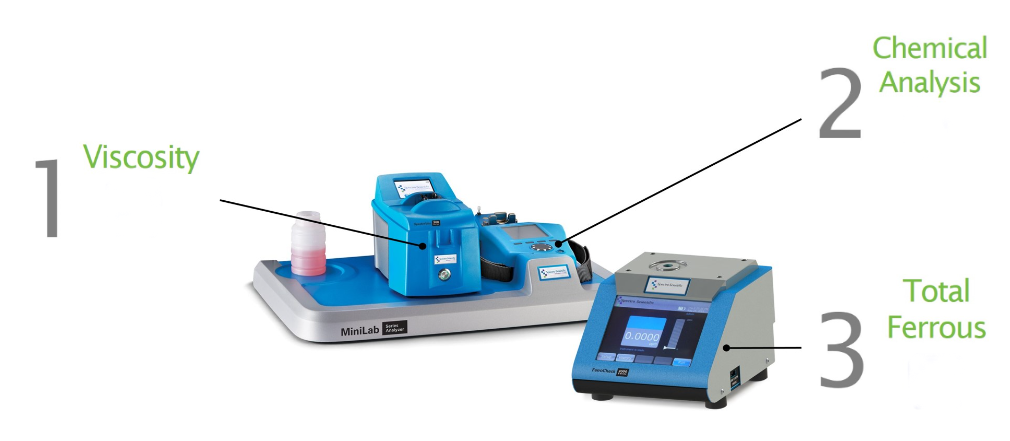

The MiniLab 33 combines three simple tests that take less than 7 minutes to complete
(Click on any three tests images below to watch how-to videos)
TruVu 360 Enterprise Fluid Intelligence
The Minilab 33 uses the TruVu 360 Enterprise Fluid Intelligence software which includes an Asset Management database and a reference oil database which can be expanded by the end user.
It provides a standard sample trend reports and Diagnostic Sets with alarm limit templates, diagnostics, and recommended actions. It can support automatic email distribution of reports.
Color-coded Trivector reports provide a clear snapshot of machinery health by identifying parameters that are outside normal limits.
Homogenizer (on stand)
Consumables
MiniLab Series Brochure
