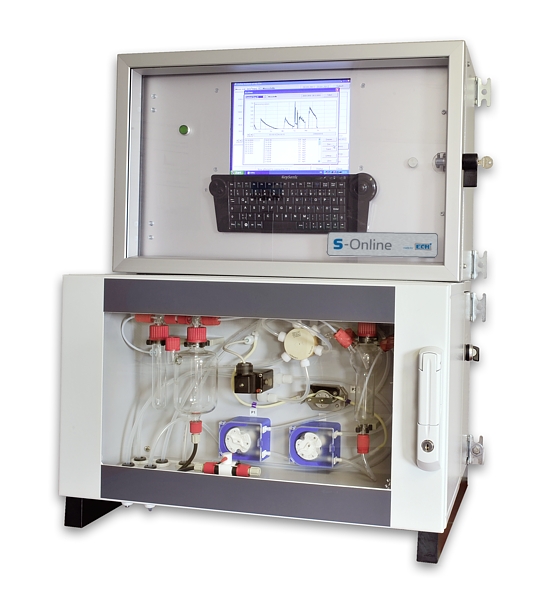

The S-Online for online determination of sulfides provides the opportunity to measure sulfides/H2S even below the odor threshold in wastewater. By the combination of a highly efficient gas extraction and a selective detection method, sulfide/H2S is determined in aqueous solutions.
After dosing, the sample is acidified forming H2S gas which is then degassed from the solution in the H2S analyzer. The gas is then carried into an amperometric sensor that is sensitive to detecting H2S. Therefore, interferences of the sample matrix do not affect the sensitive measurement. Even complex matrices such as industrial wastewater (e. g. containing alkaline wastewater, hydrocarbons or ammonia) can be monitored instantly as well as providing reproducible results.
The wastewater sample is taken up automatically. By the use of an integrated automatic back-purging, the system is robust and low-maintenance.
The measuring range can be varied widely and can also be adjusted to the required application. For instance, the S-Online can be used as a H2S dependent controlling system for chemical wastewater treatment. The results can be transferred through digital alarm- and analog outputs into the measuring station.
Advantages
Technical specifications
Taking up of the sample via transfer line up to 30 meters long, up to 5 meters deep
| Average measuring time: | 5 … 15 minutes (depending on the sample) |
| Range: | 0.01 … 1000 ppm |
| Resolution: | 0.1 µg abs., output signal linear |
| Sample volume: | 0.01…20 mL |
| Gas supply: | internal pump or compressed air |
| Gas flow: | up to 50 L/h |
| Operating voltage: | 220 – 230 V, 50 Hz, 2 A |
| Power consumption: | 100 W |
| Type of protection: | IP54 |
Applications
Areas:
ordering information
| Dimensions: | 600 x 370 x 720 mm (W x D x H) |
| Weight: | 30 kg |
