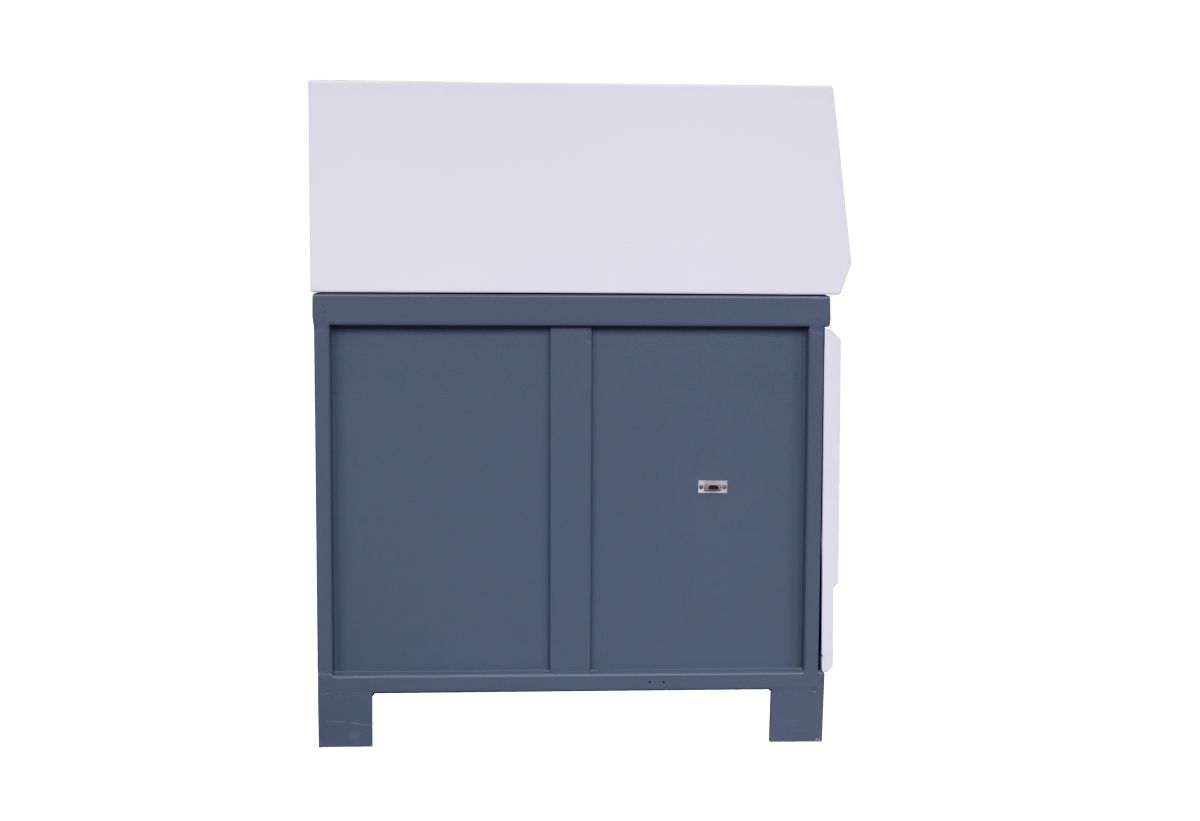

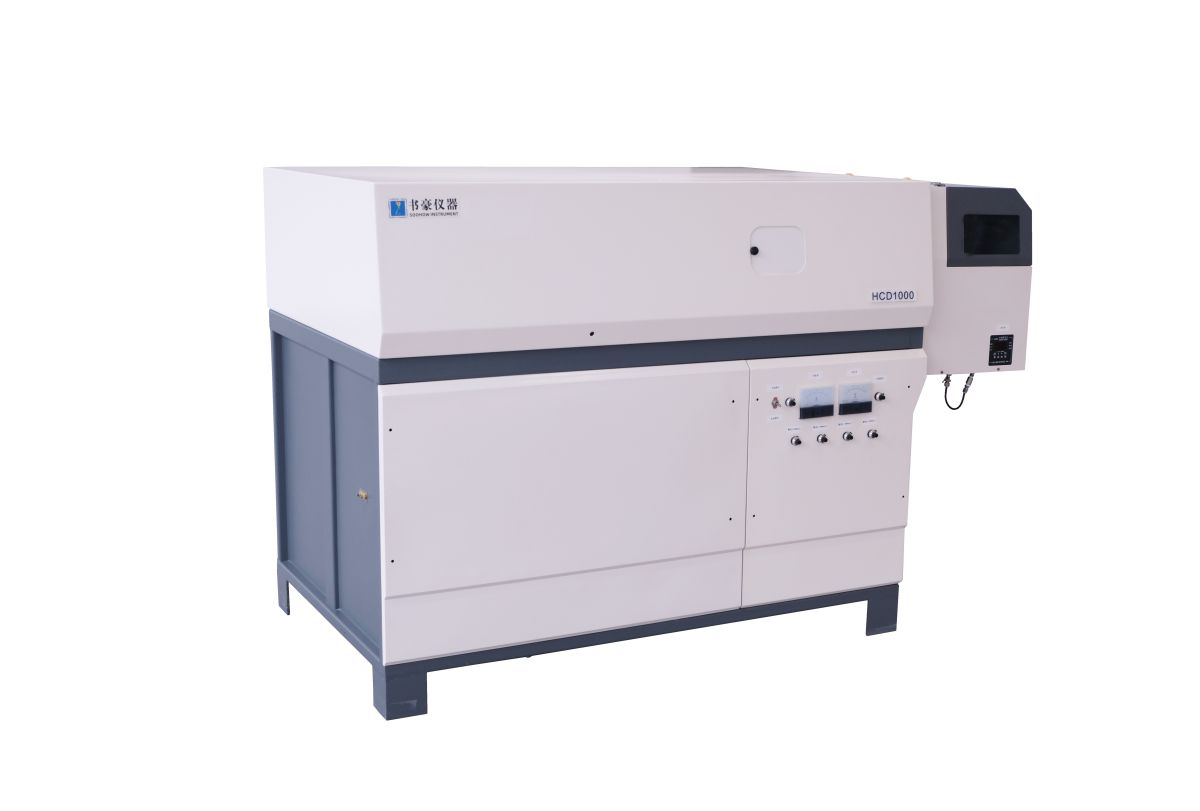

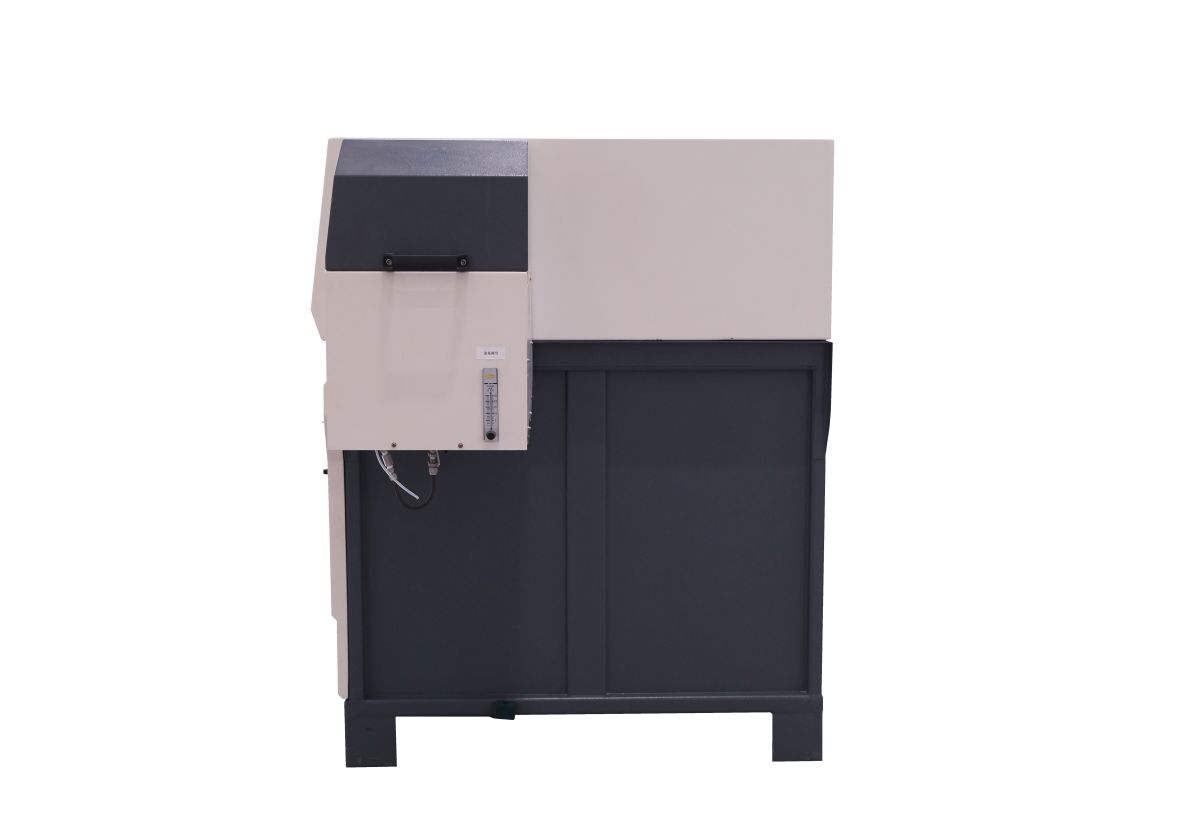

Hollow cathode spectrometer HCD1000
Part Number:
HCD1000
The HCD1000 is a high-precision optical emission spectrometer using a hollow-cathode discharge source, ideal for trace elemental analysis in ultra-pure metals, highly refractory materials, and semiconductor-grade substrates. It offers exceptional sensitivity (up to 0.000001%) for critical impurities such as lead, arsenic, oxygen, and fluorine—suitable for aerospace, electronics, and nuclear-grade applications.
Ultra-Trace Detection Capability
Accurate measurement of 45+ impurities down to 0.000001% for lead, arsenic, tin, bismuth, etc.—meeting demanding aerospace and semiconductor standards.
Dry Solid Sample Analysis
Direct excitation of powders or metal chips eliminates need for chemicals or gases—ensuring purity and safety.
Precisely Controlled Plasma System
Maintains constant temperature (~38 ± 0.1 °C) with water-cooled electrode and stable hollow-cathode discharge tube for reliable measurements.
Multi-Element Profiling
Ideal for simultaneous detection of fluorine, chlorine in UO₂, alkali metals, and oxygen in steel with very low background interference.
| Specification | Value |
|---|---|
| Spectral Range | 200–500 nm |
| Optical Focal Length | 998.8 mm |
| Grating Line Density | 2,160 lines/mm; dispersion 0.47 nm/mm |
| Temperature Control | 38 ± 0.1 °C (water-cooled electrode) |
| Sample Types | Powders, chips—analyzed dry |
| Weight | ~500 kg |
| Dimensions (L×W×H) | 1,800 × 1,050 × 1,245 mm |
| Environmental Range | 15–25 °C; RH < 75% RH |
