Direct reading ferrograph DR100

Part Number: DR100

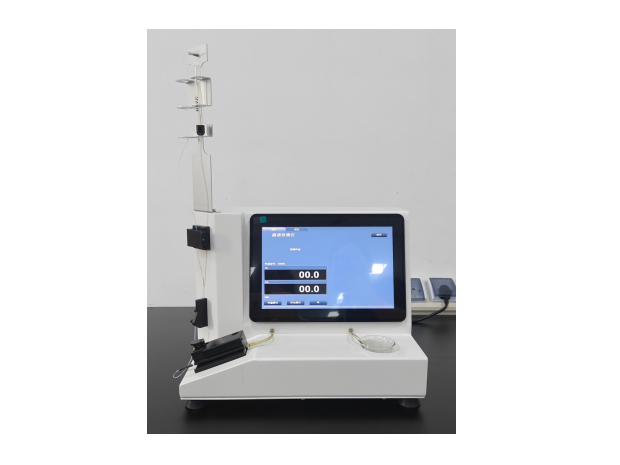

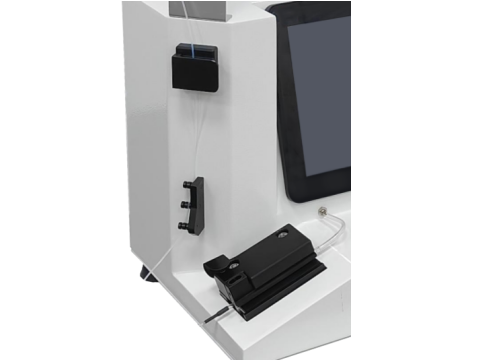

The DR100 is a benchtop ferrograph that offers fast, automated quantification of ferrous wear particles in lubricating oils. It divides debris into two size classes—large (>5 µm) and small (<5 µm)—by passing the sample through a high-gradient magnetic field. Optical sensors then measure particle concentration electronically, enabling quick, reliable wear diagnostics without requiring microscopic inspection.


                                                    Fast Turnaround

                                                Provides results in under 10 minutes using just 1 mL of oil.


                                                    Dual-Size Particle Measurement

                                                Differentiates and quantifies large and small ferrous particles to assess wear severity.


                                                    Differentiates and quantifies large and small ferrous particles to assess wear severity.

                                                Touchscreen display, USB and Ethernet ports, with digital data logging and trending.


                                                    Minimal Sample Prep

                                                Works with unfiltered oil and accommodates water-contaminated samples.


                                                    Compact & Efficient

                                                Uses minimal consumables, featuring a durable build ideal for lab or workshop use.

Specification	Value
Sample Volume	1 mL lubricant
Processing Time	<10 minutes
Particle Size Classes	Small (< 5 µm) and Large (> 5 µm) ferrous debris

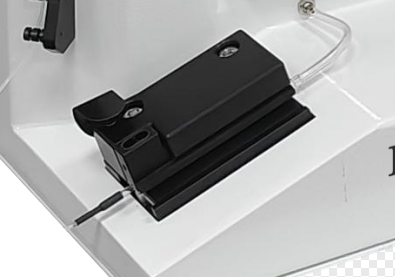

Detection Method	High-gradient magnetic precipitation + optical sensing
Display & Controls	Touchscreen interface with USB/Ethernet connectivity
Data Output	Digital logging, trend charts, alarm functions
Consumable	Tetrachloroethylene (cleaning solvent)
