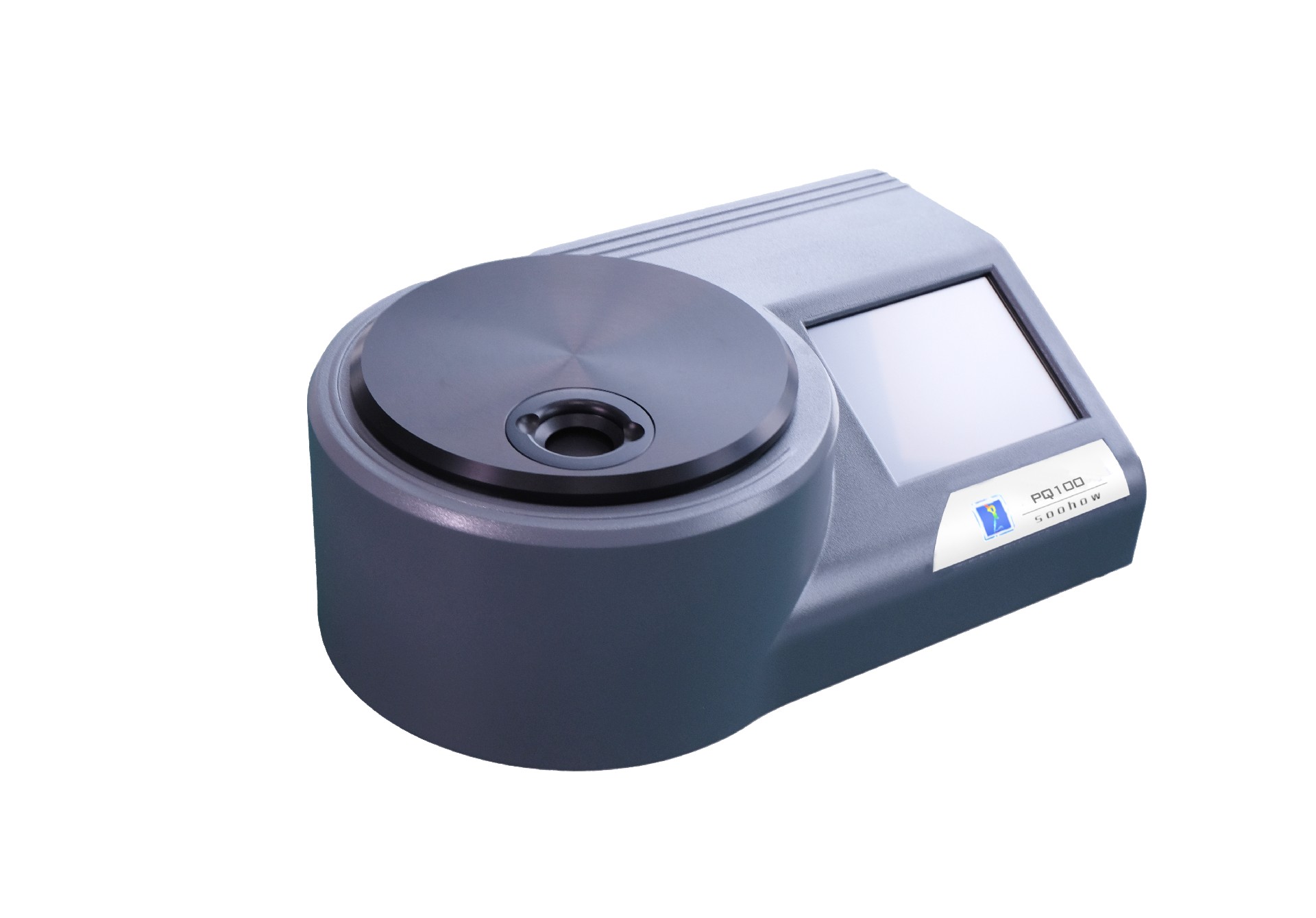

PQL Ferromagnetic Wear Analyzer PQ100
Part Number:
PQ100
The PQ100 is a compact, portable device designed for the quick detection and quantification of ferromagnetic wear particles in lubricants, hydraulic fluids, and greases. It utilizes a high-sensitivity coil sensor that measures magnetic perturbations caused by ferrous particles without any sample preparation. The unit displays results in seconds on an intuitive digital interface, making it ideal for field and routine predictive maintenance applications.
Rapid Results
Provides a ferrous wear index reading in just a few seconds—perfect for on-the-spot diagnostics.
Sensitive Detection
Detects ferromagnetic particles (starting from ~1 µm), enabling early wear condition monitoring.
No Sample Prep Required
Simply pour the fluid into the provided container—no reagents or filters needed.
Portable & User-Friendly
Compact design with handheld operation and easy-to-read digital display.
Data Logging & Connectivity
Stores test results with date/time tags, and supports USB export for trend analysis.
| Specification | Value |
|---|---|
| Measurement Time | A few seconds per test |
| Detection Size | ≥ 1 µm ferromagnetic particles |
| Wear Index Output | Digital ferrous wear index |
| Sample Volume | Small handheld container (volume not specified) |
| Display | Digital LCD or LED display |
| Power Supply | Internal rechargeable battery |
| Connectivity | USB port for data export |
| Dimensions | Handheld, compact form factor |
| Applications | Portable wear diagnostics for hydraulic, gearbox, engines |
