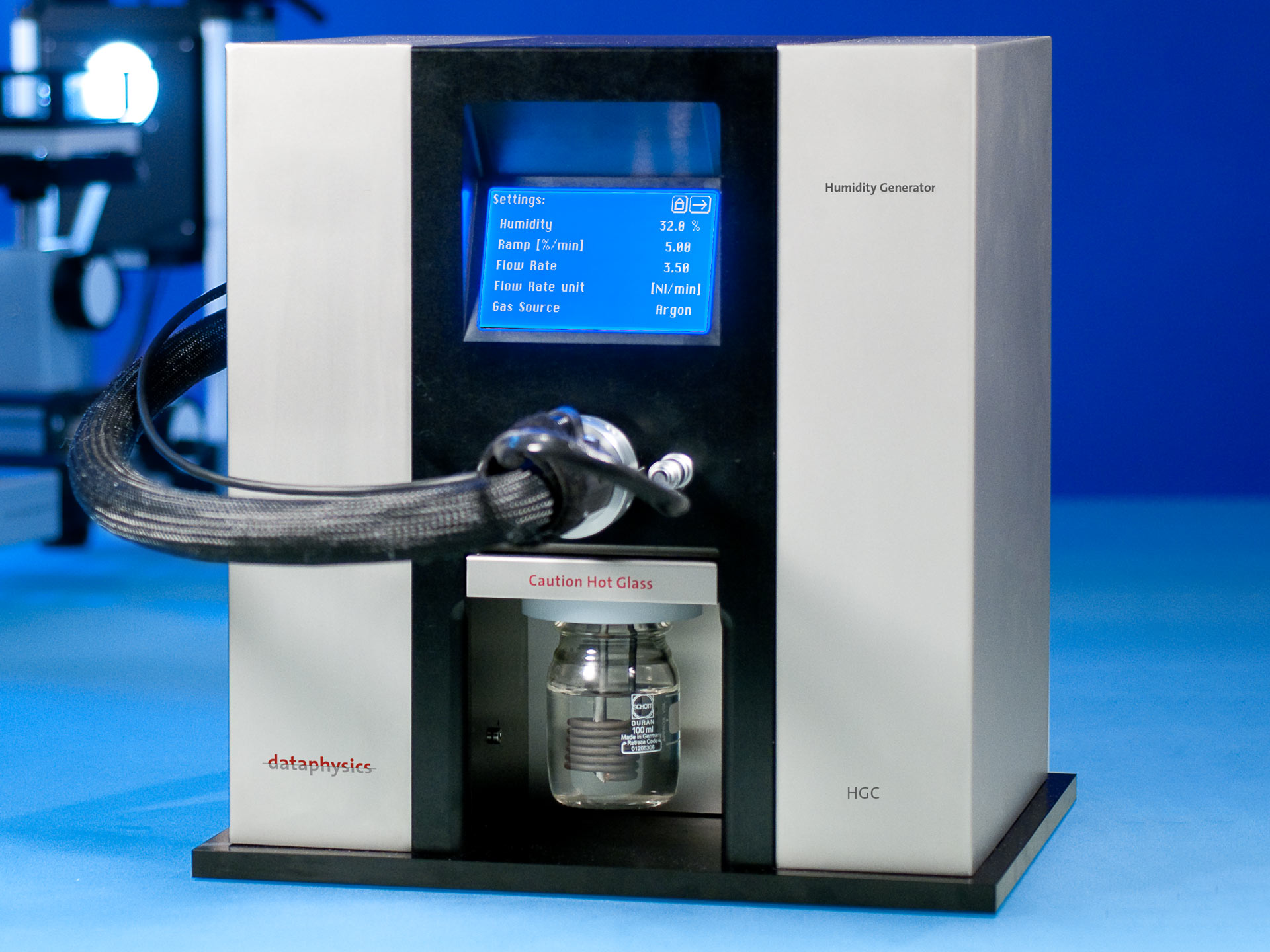

HGC – Humidity Generator and Controller

Part Number: HGC

The HGC Series offers standalone humidity generation and precision control (5 %–90 % RH) for small to mid-sized environmental chambers, including those used in DataPhysics OCA and other systems. Equipped with an integrated pump, desiccant system, heated reservoir, and touchscreen interface—or controllable via SCH 20 software—the HGC ensures reliable humidity delivery without needing compressed gas. These units support research, quality control, and humidity-dependent testing across a variety of scientific and industrial applications .


                                                    Compact and Fully Stand-Alone Humidity Control

                                                Generates precise relative humidity (5 %–90 % RH) using only ambient air—no external gas or dry-air supply needed. Features heated reservoir and gas line to prevent condensation .


                                                    Wide Compatibility and Easy Integration

                                                Works seamlessly with DataPhysics OCA chambers or third-party devices. Heated transfer lines and standard interfaces (RS‑485, USB) enable easy integration .


                                                    High Flow and Gas Options (HGC 30)

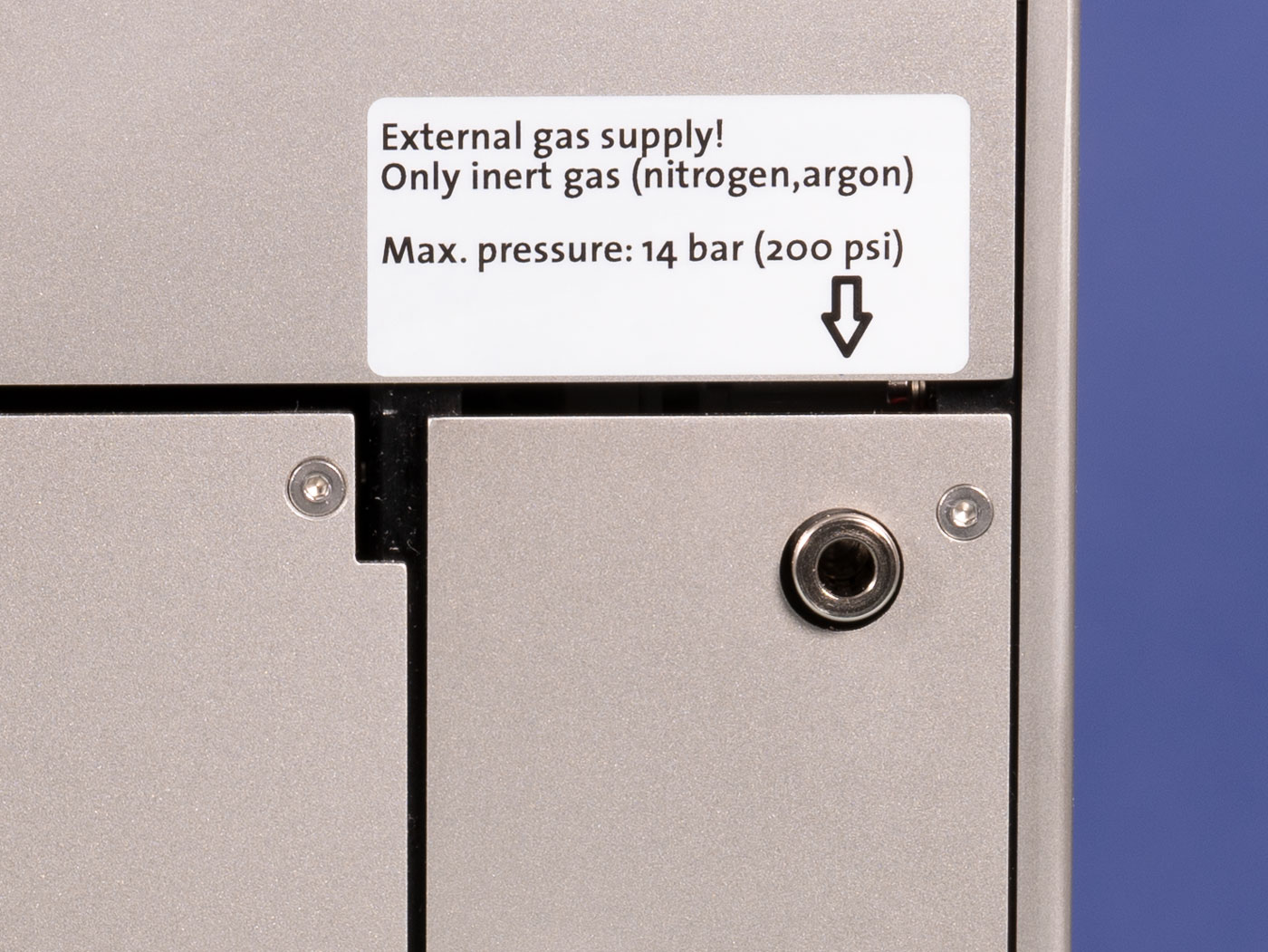

                                                The HGC 30 supports flow rates up to 3,500 mL/min and can use pressurized nitrogen or argon, featuring built-in regulators calibrated for clean, oil-free gases .


                                                    User-Friendly Touchscreen + Advanced Software

                                                Control humidity via the integrated touchscreen or through the SCH 20 Windows software, which enables humidity profiling, data logging, dew-point calculation, and export capabilities .


                                                    Automated Desiccant Regeneration

                                                Built-in heating system alternates between two desiccant reservoirs (total 1 kg), automatically regenerating to maintain consistent performance.

Specification	Value
Relative Humidity Range	5 %–90 % @ 25 °C
RH Accuracy	±1.0 %
Temperature Range	5 °C to 85 °C
Dew Point Range	–15 °C to 85 °C
Flow Rate	70–600 mL/min (air), 70–3500 mL/min (gas)
Gas Supply	Ambient + pressurized air/N₂/Ar
Heated Reservoir Volume	80 mL
Desiccant System	2 × 0.5 kg, auto regeneration
Heated Transfer Line	120 cm
Interfaces	USB, RS‑485
