Oil spectrometer OIL8000
Part Number:
OIL8000

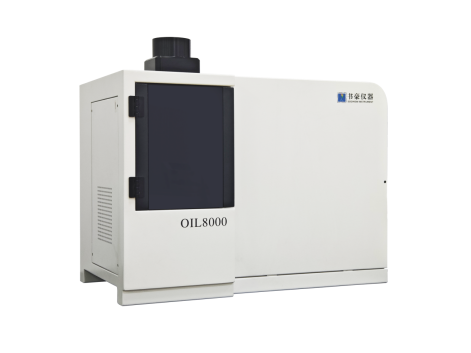

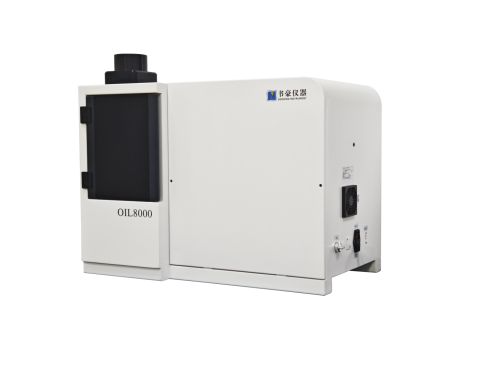

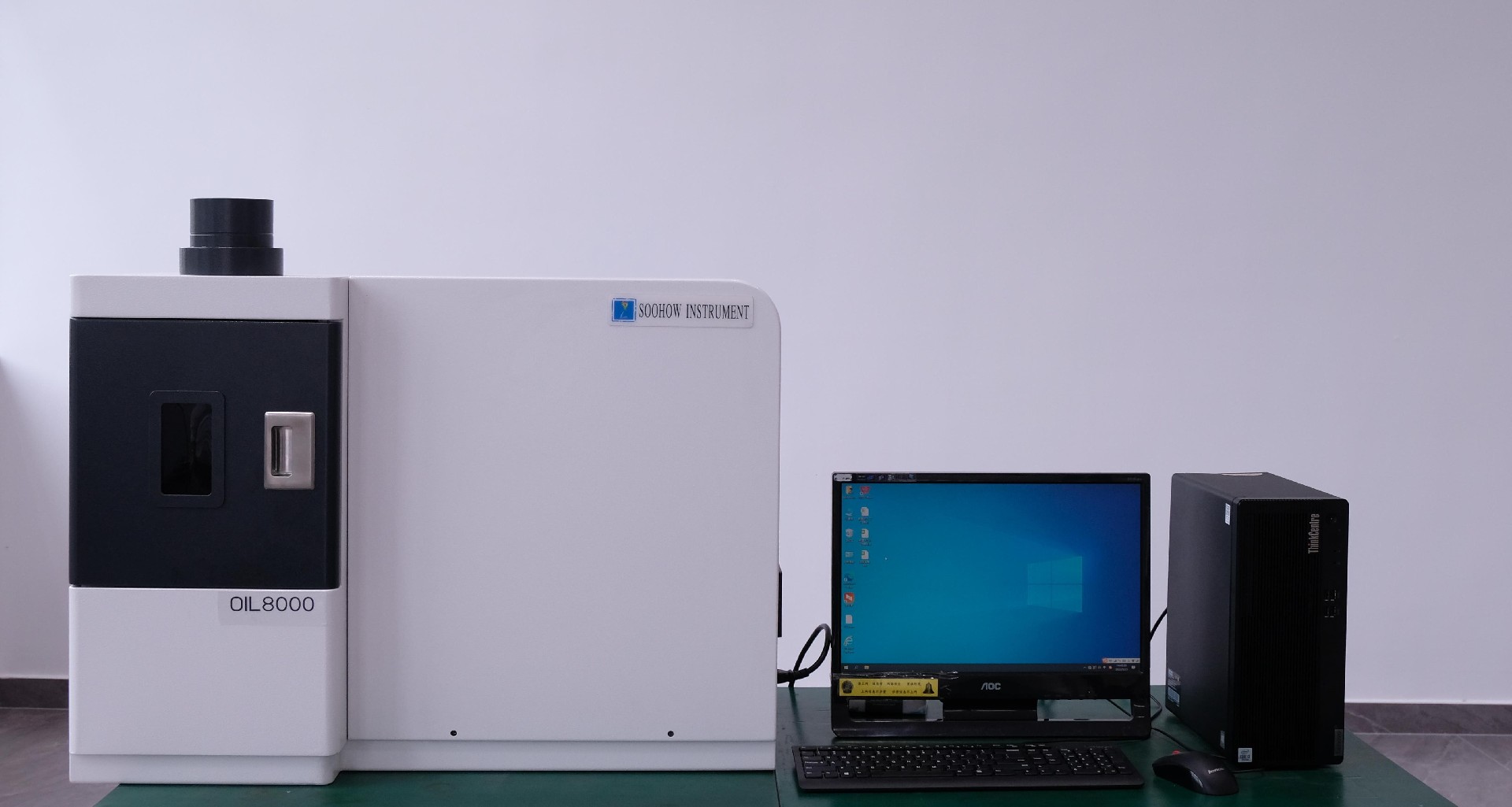

The OIL8000 is a compact, rotating disc electrode atomic emission spectrometer ideal for rapid elemental analysis in lubricating and hydraulic oils. It adheres to ASTM D6595 (wear metals) and ASTM D6728 (alkali & alkaline earth metals), and operates without dilution or auxiliary gases—ready to analyze oils directly in about 30–35 seconds with high precision (detection limits < 1 ppm)
Ultra‑Fast Analysis
Delivers full elemental results (up to 32 elements) in under 35 seconds, accelerating condition monitoring workflows .
High‑Precision Detection
Utilizes a long‑focal‑length (500 mm) Paschen-Runge + Rowland-circle optical path, powerful CCD detector (3648 pixels per channel), and drift‑compensated temperature control—providing ≤ ±1 ppm accuracy .
Broad Element Range & Customization
Standard configuration offers 24 elements; upgradable to 32 for tailored monitoring of wear and contaminants .
Easy Operation & No Prep
Equipped with intuitive WinOil software, auto‑standardization, USB data export, barcode scanner, and optional Bluetooth/Rs‑485. No dilution required—oil is analyzed straight from the cup .
.
.
Low Maintenance & Compact Build
Built‑in spark cleaner maintains excitation source; compact footprint (860×470×620 mm) and robust design (95 kg) ideal for lab-field use .
| Specification | Value |
|---|---|
| Operating Temp. Range | 0 °C – 55 °C |
| Test Time | 30–35 seconds |
| Optical Structure | Paschen‑Runge holographic grating, Rowland circle |
| Focal Length | 500 mm |
| Spectral Range | 190–800 nm |
| Detector | CCD (3648 pixels/channel; 24–32 elements) |
| Detection Limit | Typically < 1 ppm |
| Power Supply | AC 220 V ±10%, single-phase, 50/60 Hz, 10 A, 1.5 kVA |
| Dimensions (L×W×H) | 860 × 470 × 620 mm |
| Weight | ~95 kg |
