Oil spectrometer OIL8000H
Oil Analysis Elemental Analysis

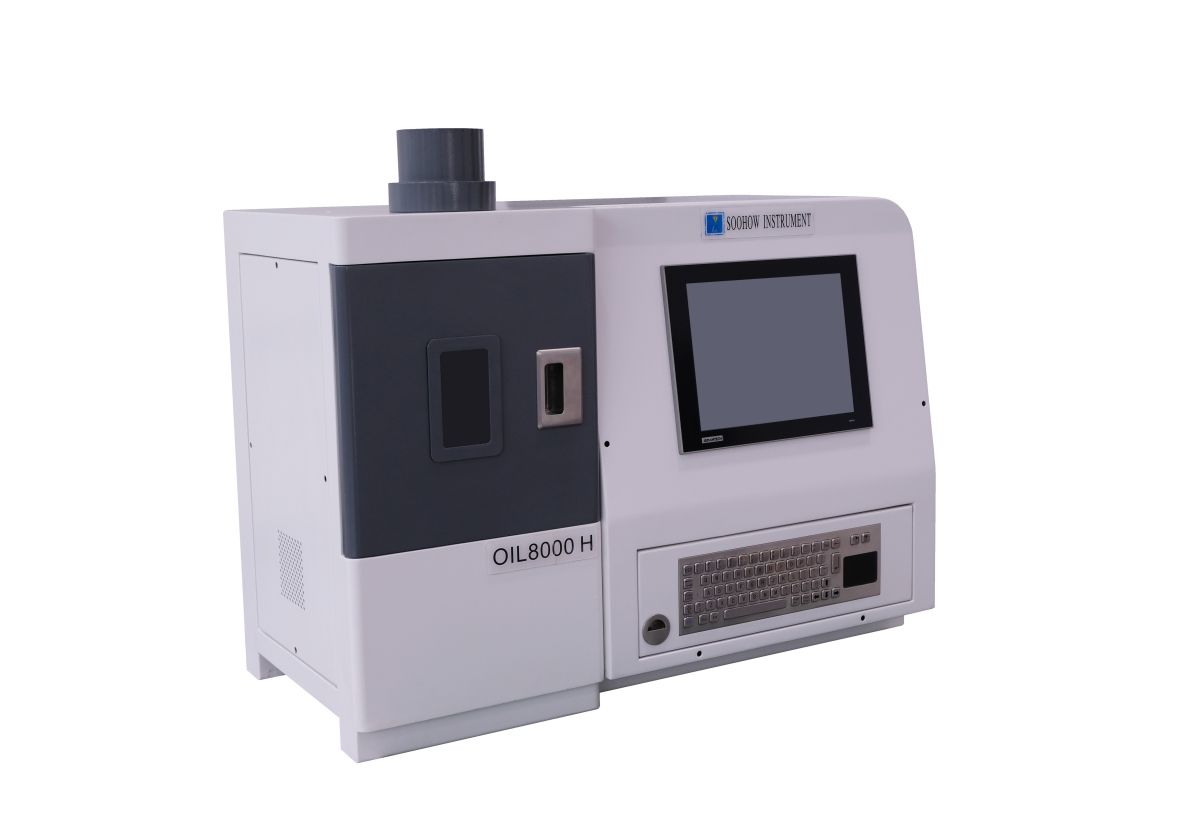

Oil spectrometer OIL8000H

Part Number: OIL8000H
The OIL8000H is a high-performance Rotating Disc Electrode Optical Emission Spectrometer (RDE-OES) designed for the rapid and direct analysis of wear metals, additives, and contaminants in lubricating and hydraulic oils. It complies with ASTM D6595, ASTM D6728, and other industrial standards, delivering results for over 24 elements in under 30 seconds without requiring sample dilution or carrier gases.
Ultra-Fast Elemental Analysis
Delivers complete multi-element oil analysis in less than 30 seconds using a high-efficiency arc excitation system and digital control.

High Sensitivity & Precision
Utilizes a high-resolution CCD detector (3648 pixels/channel), long focal length (500 mm), and temperature-stabilized optics to achieve detection limits as low as < 1 ppm.

Standards Compliance
Fully compliant with:

ASTM D6595 – Wear metals in used oil

ASTM D6728 – Alkali/alkaline earth elements

NB/SH/T 0865-2013, HB20094.1-2012, and others
User-Friendly Software
Equipped with intuitive WinOil V1.0 software, USB data export, barcode scanning, direct printing, and optional Bluetooth/RS-485 communication.

Compact & Low Maintenance
Features an internal spark cleaning mechanism for reliable operation. Compact dimensions (860×410×620 mm) and 97 kg weight make it suitable for both lab and field use.

Specification Value
Operating Temperature Range 0 °C – 55 °C
Analysis Time < 30 seconds
Optical System Paschen–Runge + Rowland-circle, 500 mm focal length
Spectral Range 200 – 800 nm
Detector CCD, 3648 pixels/channel, 24–32 elements
Detection Limit < 1 ppm
Power Supply AC 220 V ± 10%, single-phase, 50/60 Hz, 10 A, 1.5 kVA
Dimensions (L×W×H) 860 × 410 × 620 mm
Weight ~97 kg
