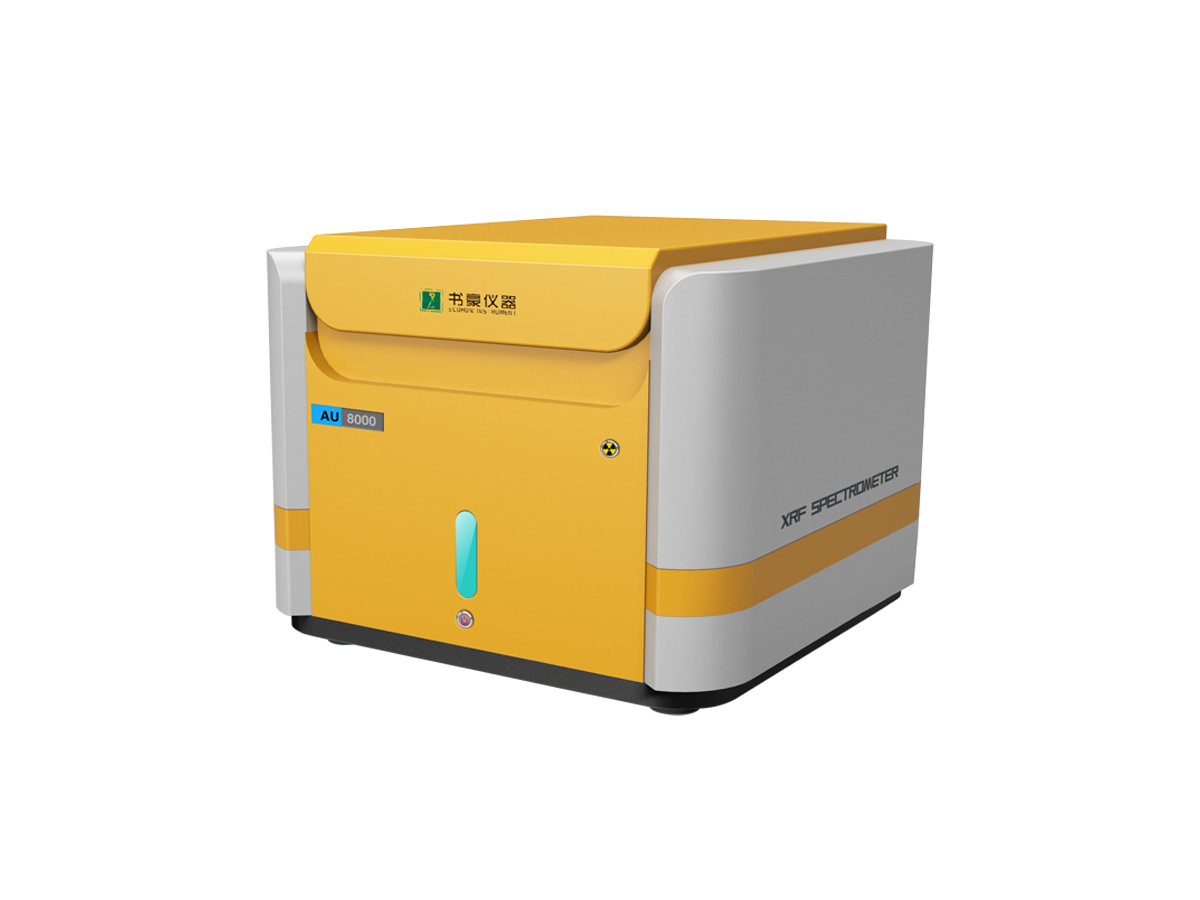

Fluorescence spectrometer AU8000

Part Number: AU8000

The AU8000 is a bench-top X-ray fluorescence (XRF) analyzer optimized for rapid, non-destructive determination of precious and base metal composition—such as gold, silver, platinum, palladium, copper, zinc, and nickel. It uses a Si‑PIN semiconductor detector coupled with a digital pulse processor, meeting Chinese national resolution standards (GB/T 18043‑2013). Its applications range from jewelry stores to smelters and recycling centers


                                                    High Precision, Multi-Element Detection

                                                Simultaneously measures 24 elements, with detection limits from ppm up to 99.99%—achieving exceptional resolution (~149 eV) and repeatability (~0.05% for >96% content samples).


                                                    Solid-State Cooling, No Cryogens

                                                Uses an electrically cooled Si‑PIN detector, eliminating the need for liquid nitrogen—simplifying operation .


                                                     Built-In Camera & Filtration

                                                Includes an HD camera for sample positioning and a collimator/filter system for optimized measurement across powders, solids, and liquids.


                                                     Safety-Focused & Easy to Operate

                                                Features triple safety protection, friendly software with matrix correction, and a robust housing for industrial use.


                                                    Fast, Customizable Measurements

                                                Adjustable measurement times from 60 to 200 seconds, depending on the required accuracy.

Specification	Value
Spectral Range	S (Sulfur) through U (Uranium), 24 elements total
Resolution	~149 eV
Detection Range	ppm to 99.99%
Repeatability	~0.05% for major components (>96%)
Measurement Time	60–200 seconds (adjustable)
Detector Type	Electrically cooled Si‑PIN
Sample Compatibility	Solids, liquids, powders
Cooling	Electric refrigeration (no cryogen)
Safety	Triple-layer protective design
Power Supply	Integrated HD industrial camera for sample alignment
Camera	Integrated HD industrial camera for sample alignment
