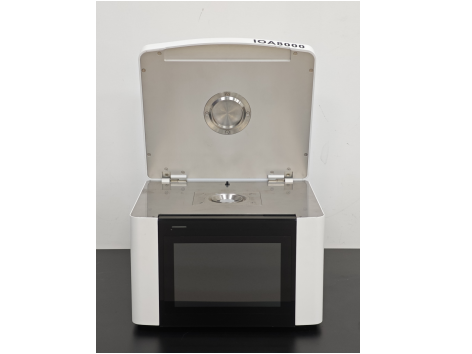

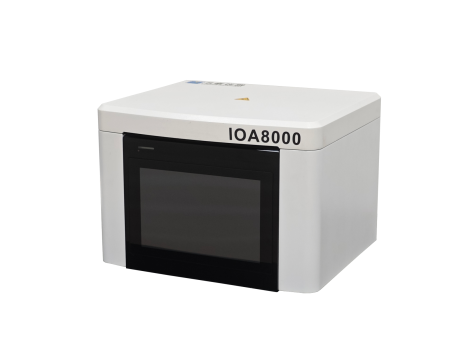

Intelligent oil analyzer IOA8000

Part Number: IOA8000

The IOA8000 is a portable, user-friendly energy-dispersive X-ray fluorescence (EDXRF) analyzer tailored for rapid, on-site analysis of wear metals, contaminants, and additive elements in lubricating oils and greases. Designed for non-specialists, the device delivers quantitative results in under 5 minutes, making it ideal for predictive maintenance in rail, marine, and industrial applications. It handles various petroleum-based samples—including engine oil, hydraulic fluid, grease, biodiesel, and residues—without the need for complex prep or harmful chemicals


                                                    Fast, Automated Analysis

                                                Delivers multiple element readings (Fe, Cu, Si, Zn, Ca, S, Cl, etc.) within 30–300 seconds, suitable for "oil change by condition" strategies.


                                                    Wide Element Range

                                                Detects from magnesium (Mg) to uranium (U), covering wear metals, additives, and contaminants.


                                                    High Sensitivity & Resolution

                                                SDD or fast SDD detector achieves detection limits from ~2–10 ppm, essential for sulfur in fuel assessments.


                                                    Ultra-Simple, Non-Destructive Use

                                                No sample prep needed—even for grease. Just place the sample and press start—no chemical use, fumes, or fume hoods required.


                                                    Specialized Calibration Packages

                                                Includes built-in calibration curves for railway greases and oils, enhancing field relevance and accuracy.


                                                    Cost-Effective & Low Maintenance

                                                Minimal consumables and maintenance requirements reduce operational costs—ideal for remote or mobile deployments.

Specification	Value
Element Range	Mg to U (magnesium to uranium)
Sample Types	Oil, grease, hydraulic fluid, diesel, fuel, biodiesel, residue
Concentration Range	2 ppm up to 99.99%
Detection Method	Energy-dispersive XRF
Detector	SDD or Fast SDD (~130–125 eV resolution)
Detection Time	30–300 seconds
Operating Temperature	–10 °C to +50 °C
Humidity Tolerance	< 90% RH
Dimensions	400 × 332 × 272 mm
Weight	~4.6 kg
