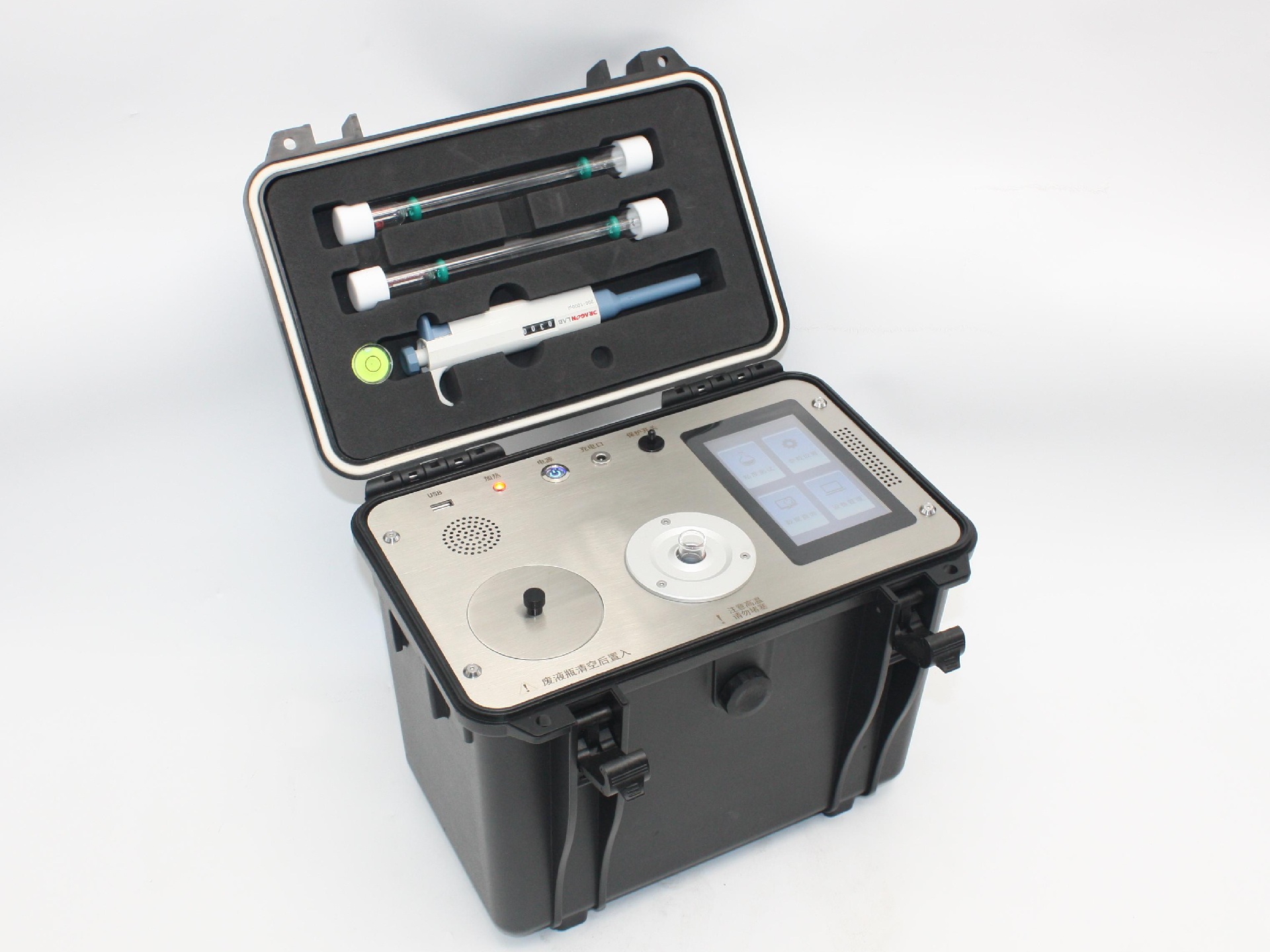

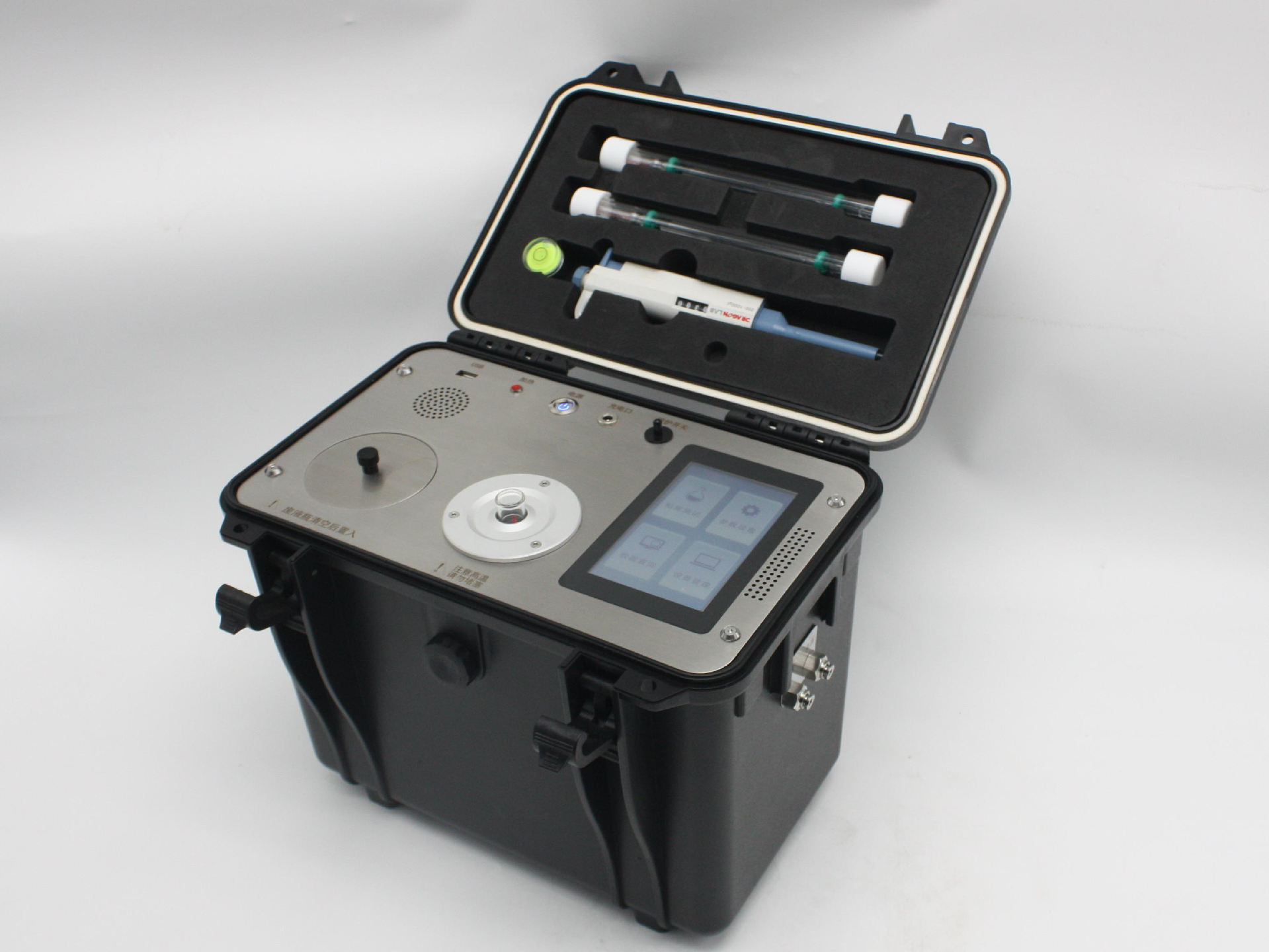

VS600 Portable Rapid Motion Viscometer

Part Number: VS600

The VS600 Portable Rapid Motion Viscometer is a high-efficiency field instrument designed for fast and accurate kinematic viscosity measurement of transparent and opaque Newtonian fluids. Built for outdoor and mobile applications, it integrates a fully automated system for sample injection, measurement, cleaning, drying, and result calculation—all within just a few minutes.


                                                    Fast & Fully Automated Workflow

                                                The entire process—from injection, measurement, cleaning, drying, to result output—is performed automatically. Results are typically delivered within 1–3 minutes, and the complete cycle is finished in under 5 minutes.


                                                    Wide Fluid Compatibility

                                                Capable of testing transparent and opaque Newtonian fluids, including lubricating oil, fuel oils, additives, diesel, gasoline, kerosene, cutting fluid, and heat transfer oils—whether new or used.


                                                    High Accuracy & Precision

                                                With a measurement repeatability of ≤1% and temperature accuracy of ±0.1 °C, the device provides reliable, consistent viscosity data under a range of operational conditions.


                                                    Minimal Sample & Solvent Consumption

                                                Requires only 0.3–1 mL of sample and <10 mL of cleaning solvent per cycle, drastically reducing operational cost and waste.


                                                    Portable Engineering Design

                                                Compact and lightweight (approx. 8 kg), the VS600 comes in a custom-built, rugged carry case offering water/dust/shock protection for extreme environments.


                                                    Plug-and-Play Viscometer Tube

                                                Viscosity tubes are hot-swappable and replaceable in less than 10 seconds, allowing quick adaptation in the field.


                                                    Long Battery Life

                                                Powered by high-capacity lithium battery cells, it supports up to 10 hours of autonomous operation at 100 °C.


                                                    Smart Temperature Control

                                                Offers real-time, stable heating between 40–100 °C with precise electronic regulation.


                                                    Data Export via USB

                                                Includes USB interface for data backup and report generation.


                                                    Optional Disposable Filters

                                                Can be equipped with single-use filters to minimize contamination and simplify sample pretreatment.

Specification	Value
Measurement Standards	ASTM D7279, ASTM D445, NB/SH/T 0956-2017
Viscosity Range	2 – 2000 mm²/s
Temperature Control Range	40 – 100 °C
Temperature Accuracy	±0.1 °C
Timing Resolution	0.01 seconds
Repeatability	≤ 1%
Sample Volume	0.3 – 1 mL
Cleaning Solvent Use	< 10 mL per cycle
Measurement Time	Fastest: 1 minute; Typical: 3 minutes
Power Consumption	≤ 25W
Power Supply	AC 220V ±10%, 50Hz ±10%
Battery Life	Up to 10 hours at 100 °C
USB Export	Supported
Environmental Temp.	10 – 28 °C
Humidity Range	< 80% RH
Device Dimensions	390 × 230 × 300 mm (L × W × H)
Weight	Approx. 8 kg
Operating Conditions	No strong vibration, airflow, EMI, or gas
