Cito Autosampler for S-flow IV

Part Number: Cito

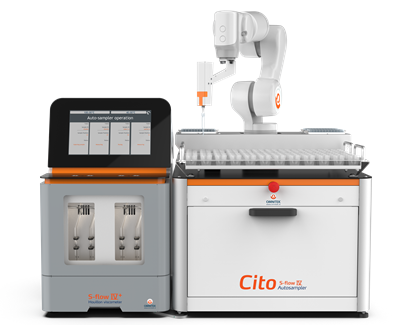

The Cito Autosampler is a high-speed, modular robotic arm designed to fully automate the sample injection process for the S‑Flow IV+ kinematic viscometer. It seamlessly integrates with existing systems—servicing up to two S‑Flow IV+ units simultaneously (8 tubes total)—and enables unattended operation, enhancing throughput and consistency in viscosity testing .


                                                    High Throughput & Autonomy

                                                Processes 25–80 injections per hour (up to 80/hr when both S‑Flow IV+ units are connected), operating completely unattended—even overnight .


                                                    Low Sample Volume & Precision

                                                Compatible with samples ranging from 2 to 2,500 mm²/s, using standard or wide‑bore pipette tips according to viscosity—reducing human error .


                                                    Customizable Tray Configurations

                                                Supports trays with 96 (30 mL cups) or 192 (12 mL vials), or custom trays to fit your workflow .


                                                    Drip-Prevention & Carry-Over Control

                                                Equipped with a retractable drip-reservoir and built-in detection of liquid levels to avoid spills and contamination .


                                                    Complete Viscosity Index Workflow

                                                From a single aspiration, executes injections at 40 °C and 100 °C across both baths to automatically calculate Viscosity Index .


                                                    Scalable & Upgradeable

                                                Fully modular, can be field‑installed to any S‑Flow IV+; services dual units with expandable pipette tip and tray configurations .

Specification	Value
Sample Throughput	25–40 injections/hour per system; up to 80 with dual S‑Flow IV+ units
Viscosity Range	2–2,500 mm²/s @ 25 °C
Compatible Tray Types	96 × 30 mL cups or 192 × 12 mL vials; custom trays available
Tubes Serviced	Up to 8 Houillon tubes across two S‑Flow IV+ systems
Tip Detection & Drip Control	Automatic level detection with retractable drip‑catch reservoir
Dimensions (W×D×H)	60 × 71 × 120 cm for standalone; 101 × 71 × 120 cm w/ one S‑Flow; 162 × 71 × 120 cm w/ two
Weight	53 kg standalone
Power Requirements	100–240 VAC, 50/60 Hz; 200 W
Data Export	PC software interface (USB, via S‑Flow IV+)
