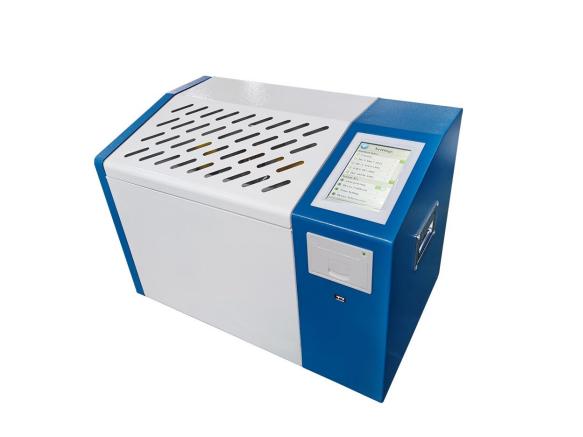

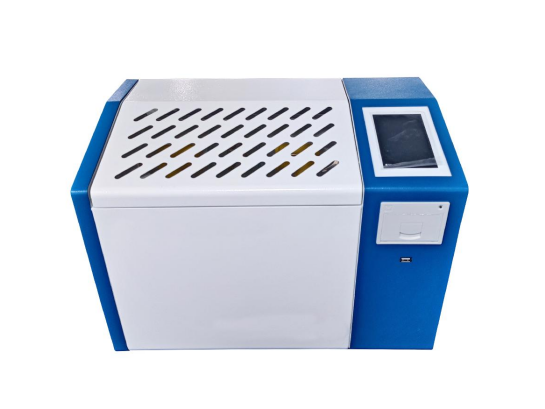

JKJQ‑1A Insulating Oil Dielectric Strength Tester

Part Number: JKJQ‑1A

The JKJQ‑1A is a fully automatic, portable single-cup tester designed to measure the dielectric (breakdown) strength of insulating oils used in transformers, switchgear, and high-voltage equipment. It complies with standards GB/T 507‑2002, DL429.9‑91, and DL/T 846.7‑2004, and uses a microprocessor to automate the test cycle—voltage ramping, holding, stirring, breakdown detection, discharge, analysis, memory storage of up to 100 readings, and thermal printout—ensuring accurate, repeatable results with reduced operator effort and portable convenience.


                                                    Automatic, High-Precision Breakdown Testing

                                                Features a microprocessor-controlled voltage ramp up to 80–100 kV (optional), with distortion under 3% and accuracy of ±3%, ensuring consistent, standard-compliant BDV testing.


                                                    Fully Automated Workflow

                                                Executes the entire test cycle—ramp, hold, stirring, rest, discharge, calculation, printing, and memory storage—without manual intervention, improving lab efficiency and safety.


                                                    Intuitive Touchscreen & Multilingual Display

                                                Equipped with a large LCD touchscreen featuring Chinese/English menu prompts, displaying ambient temperature and humidity, test results, and system clock.


                                                    Robust Safety Features & Data Management

                                                Includes protections for over-voltage, over-current, and electrode limits. Stores up to 100 test records and supports RS‑232/USB data export, with built-in thermal printing.

Specification	Value
Output Voltage	0–80 kV (standard), optional 0–100 kV
Distortion Rate	< 3%
Voltage Ramp Speed	0.5–5 kV/s (adjustable)
Resting Hold Time	Default 15 min (adjustable)
Boost Interval	Default 5 min (adjustable)
Number of Boost Cycles	1–10 cycles (optional)
Booster Capacity	1.5 kVA
Accuracy	±3%
Power Supply	AC 220 V ±10%, 50 Hz ±1 Hz
Power Consumption	200 W
Operating Temp & Humidity	0–45 °C; <75% RH
Memory Capacity	Stores up to 100 test results; power-off retention
Interfaces	RS‑232 and USB export; thermal printer included
Display	Large LCD with touchscreen prompts
Dimensions	~430×350×370 mm (varies by model)
Weight	Approx. 26 kg
