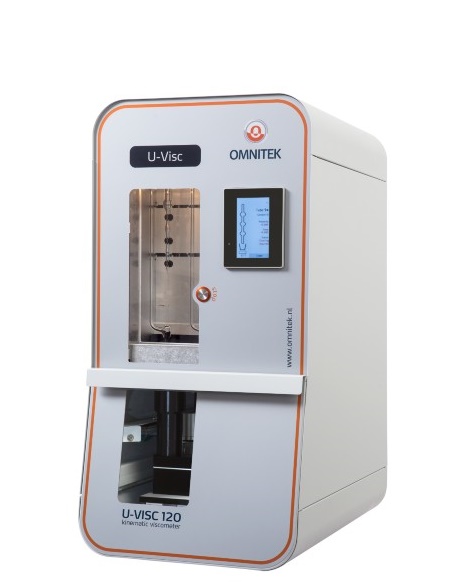

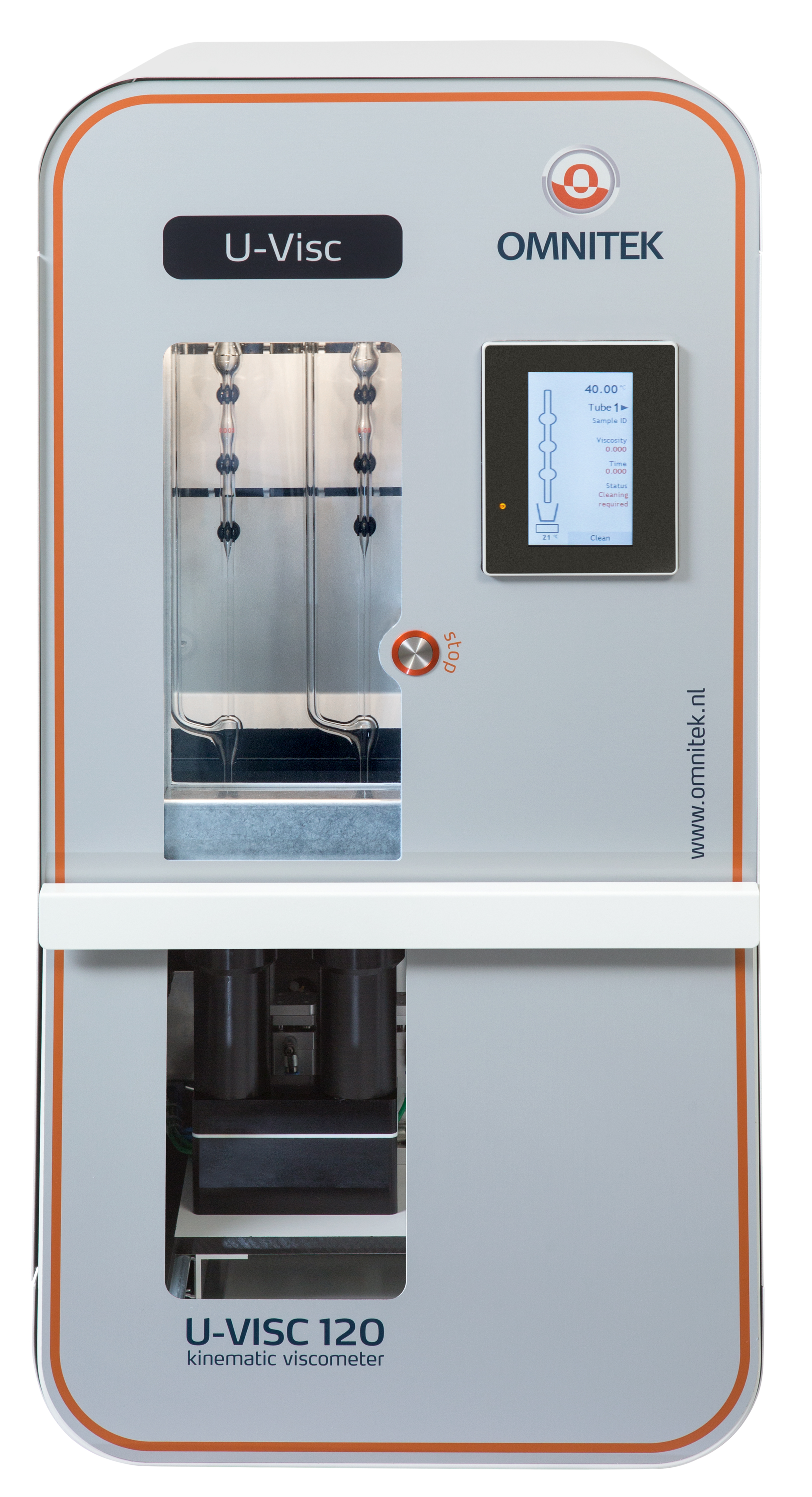

U-Visc kinematic viscometer

Part Number: U-Visc

The U‑Visc series are fully‑automatic Ubbelohde‑tube viscometers, designed for rapid, unattended kinematic viscosity measurement of Newtonian fluids (lubricants, fuels, polymers), with full ASTM D445/D446 compliance. They offer bath-based thermal control, optical/thermal detection, and are available in 1‑ or 2‑bath configurations with 1 or 2 tubes per bath.
The BitUVisc variant extends the viscosity range up to 120,000 mm²/s and allows measurements up to 150 °C, ideal for high-viscosity samples .


                                                    Fully ASTM-compliant

                                                Meets ASTM D445/D446 (plus D2170 for BitUVisc), ISO 3104/3105, IP 71, DIN 51562, IP 71, JIS, EN, EN standards .


                                                    High Throughput & Low Volume

                                                Processes up to 40 samples/hr (per unit), using only 8–16 mL sample and 10–15 mL cleaning solvent per cycle .


                                                    Precise Temperature Control

                                                15–150 °C range, stability ±0.01 °C (≤100 °C) or ±0.03 °C at higher temps; temperature-controlled baths, optional pre‑heater and chiller .


                                                    Vacuum/Pressure Sampling & Duplex

                                                Prevents sample evaporation using vacuum/pressure fill; optional "duplo" duplicates for unstable fluids .


                                                    Auto-Cleaning & Tube Exchange

                                                Cleans both inside and outside viscometer tubes with solvent + air; easy swap for maintenance. Dual-solvent cleaning optional .


                                                    Flexible Bath Configurations

                                                "Models:

U‑Visc 110/120: one bath (1 or 2 tubes).

U‑Visc 210/220: two independent baths — ideal for viscosity index testing ."

Specification	Value
Viscosity Range	0.15–25,000 mm²/s @40 °C (U‑Visc); up to 120,000 mm²/s (BitUVisc)
Temp Range / Stability	15–150 °C; ±0.01 °C (≤100 °C), ±0.03 °C (>100 °C)
Timer Resolution	0.001 s
Sample Volume	8–16 mL
Solvent Use	10–15 mL per cycle
Throughput	Up to 40 tests/hr
Standards Met	ASTM D445/D446/D2170, ISO 3104/3105, IP 71, DIN 51562, AASHTO T201
Sampling Method	Vacuum or pressure
Bath Configurations	110:1 bath 1 tube; 120:1 bath 2 tubes; 210:2 baths 1 tube each; 220:2 baths 2 tubes each
Cleaning Options	Auto, single or dual-solvent
Tube Style	Ubbelohde glass
Interface	12″ touchscreen + PC software, RS‑232, USB export
Sizes & Weight	110/120: 38×62×78 cm / 54 kg; 210/220: 75×62×78 cm / 92 kg
Power	110/230 V, 50/60 Hz, 10 A (110/120) or 16 A (210/220)
