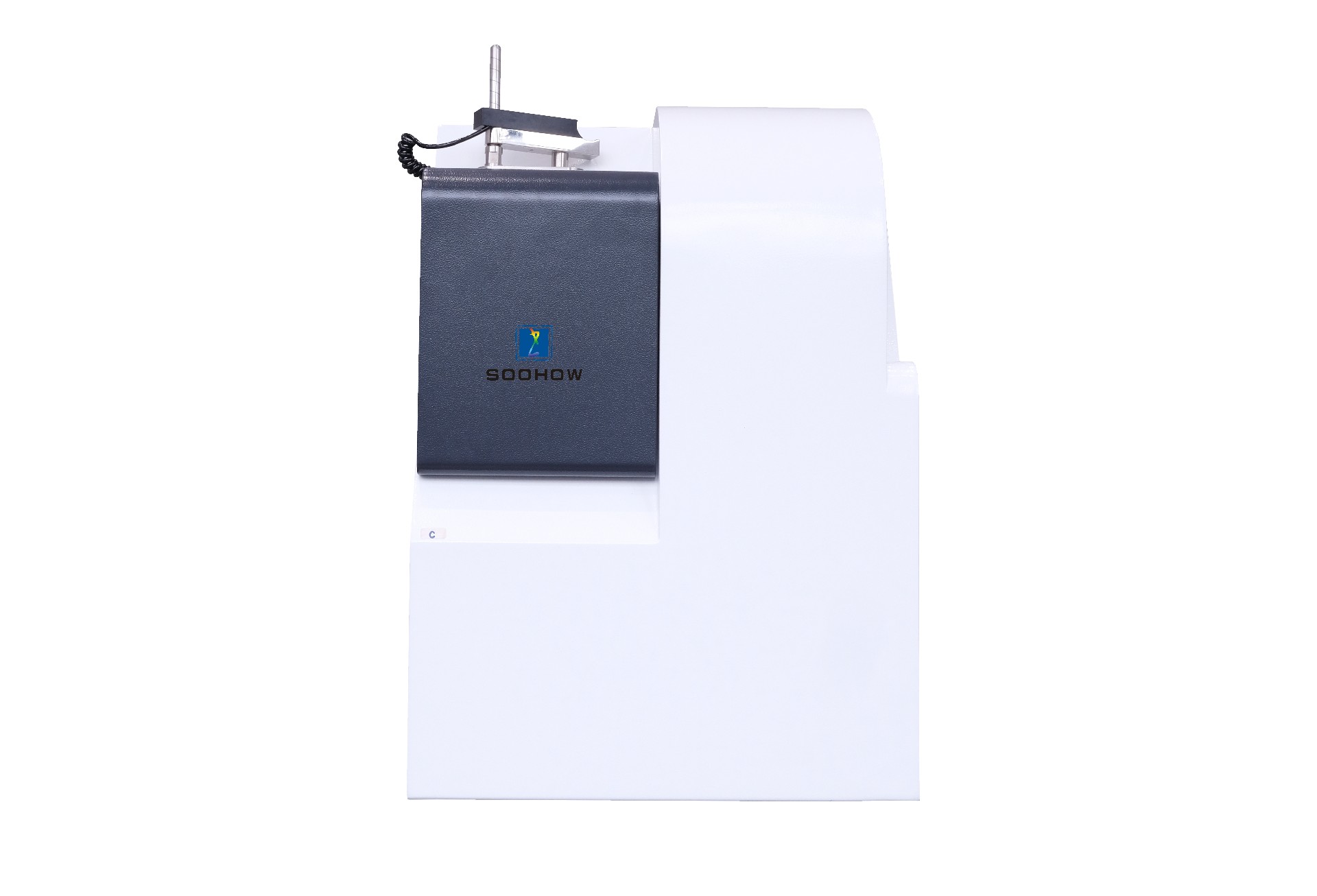

Explorer CCD FS500

Part Number: FS500

The FS500 is a state-of-the-art full-spectrum spark optical emission spectrometer designed for rapid and accurate multi-element analysis of ferrous and non-ferrous alloys. It employs an advanced CCD-based detection system and an automatic optical tracing, sealed chamber, and vibration isolation, enabling lab-grade performance for alloy quality control, foundry analysis, and R&D.


                                                    Full-Spectrum CCD Detection

                                                Single CCD (3648 pixels, expandable to 16 CCDs) paired with a high-performance holographic grating provides wide spectral coverage (~130–800 nm) and exceptional sensitivity.


                                                    Fast Analysis & Broad Dynamic Range

                                                Delivers precision results from ppm to percent levels within 15–30 seconds, meeting JJG768‑2005 standards.


                                                    Robust Sealed Design

                                                Vacuum-sealed optical chamber with temperature control (33 ± 0.1 °C) and vibration damping ensures stable, long-term performance.

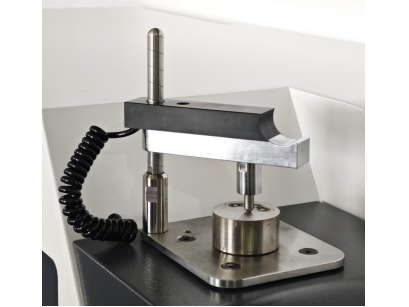

                                                    Efficient Argon-Purged Spark Table

                                                Open design supports samples up to 20 kg, with low argon consumption and adaptable electrode options.


                                                    Adjustable Spark Parameters

                                                PC-controlled spark power (1–100 A) and frequency (20–1000 Hz), with HEPS for optimal excitation stability.


                                                    Feature-Rich WinLab Software

                                                Offers calibration, matrix correction, alloy libraries, data management, statistics, and LIMS connectivity.

Specification	Value
Spectral Range	~130–800 nm
Detector	Single 3648-pixel CCD (expandable to 16)
Grating	2700 lines/mm holographic
Optical Focal Length	500 mm
Sealed Optical Chamber Temp	33 ± 0.1 °C
Sample Capacity	Up to 20 kg
Spark Power & Frequency	1–100 A, 20–1000 Hz (HEPS)
Argon Consumption	Low flow, automatic control
Analysis Time	15–30 seconds
Power Supply	220 V ±10%, 10 A, ~1000 VA
Dimensions (WxDxH)	930 × 400 × 630 mm
Weight	~100 kg
