Pi Raptor Portable

Part Number: Raptor

The Raptor Portable Dry Powder Particle Size & Shape Analyzer is the first truly portable system that brings laboratory-grade dynamic image analysis to the field. Housed in a rugged, carry-on case with its own battery and cooling system, it provides high-resolution analysis of both dry powders and wet suspensions. Ideal for industries like drilling, pharmaceuticals, additive manufacturing, and construction, the device delivers real-time particle size, shape, concentration, and thumbnail imaging—empowering users to make instantaneous, accurate decisions on-site.


                                                    True Portability

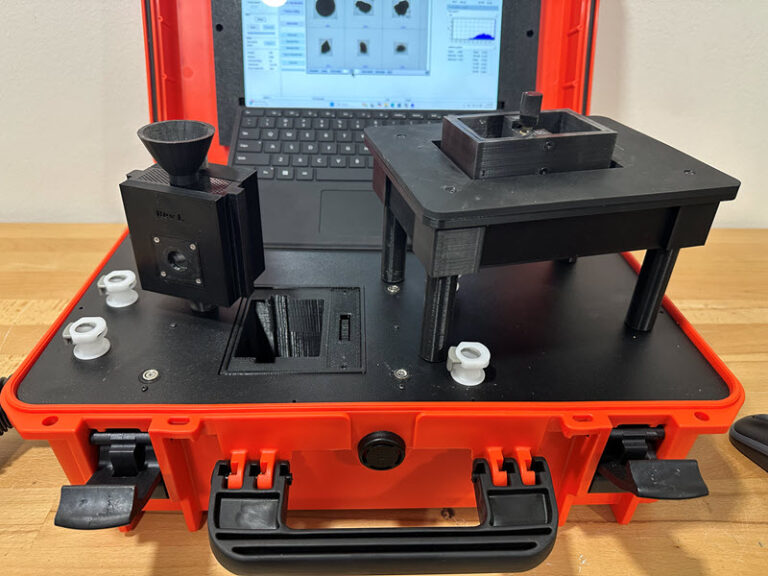

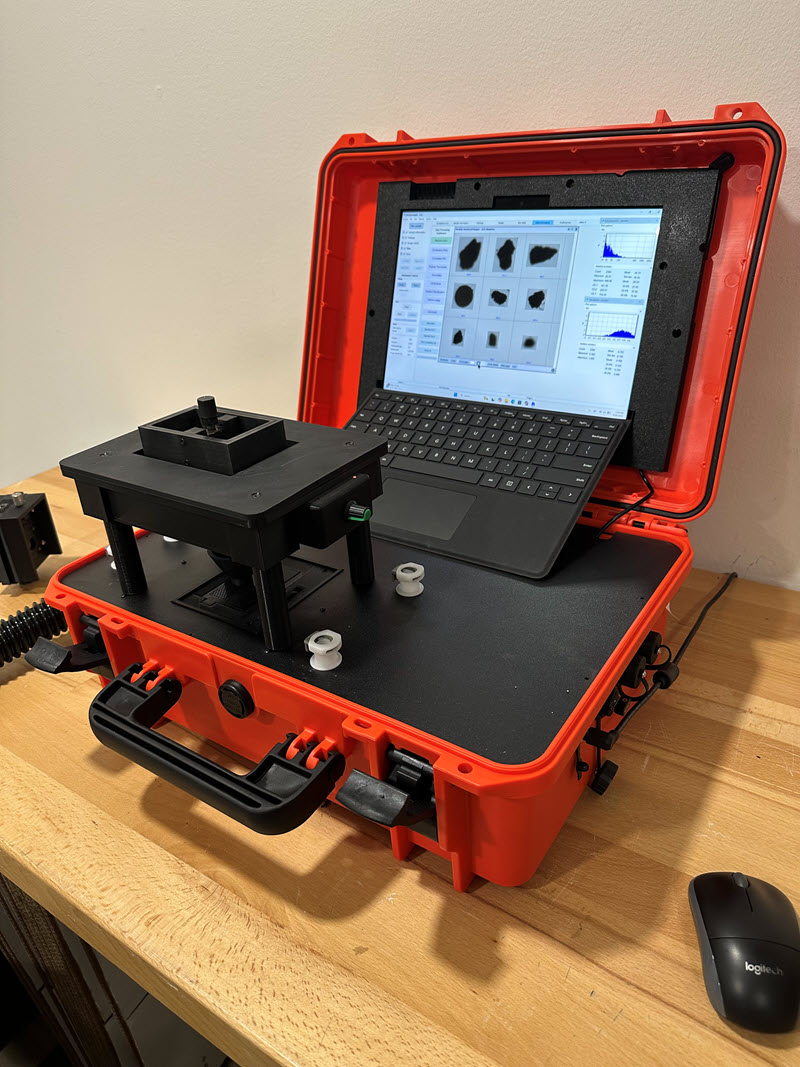

                                                Encased in a durable, rugged flight case with built-in battery and cooling system, the Raptor is designed for harsh environments—perfect for on-site material analysis or lab use.


                                                    Dynamic Image Analysis

                                                Captures high-resolution images of each particle, enabling accurate measurement of size and shape. Eliminates reliance on expert interpretation—thumbnail evidence is immediately available.


                                                    Versatile Sample Handling

                                                Supports both dry powder and wet suspension modules with interchangeable flow cells. Users can analyze materials like drilling mud, LCM, powders, or slurries by simply switching sample cartridges.


                                                    Wide Size Measurement Range

                                                Available configurations cover particle sizes from 1 µm up to 3000 µm, accommodating diverse applications—from fine powders to coarse materials.


                                                    Real-Time Results & Data Visualization

                                                Delivers comprehensive size, shape, and concentration metrics in minutes. Features correlation plots, distribution charts, pass/fail logic, and dataset overlay—all accessible via onboard touch screen or smartphone app.


                                                    Field & Lab Integration

                                                Combines portability with performance: battery-operated and field-ready, yet fully equipped for benchtop use. Ideal for quality control, R&D, or remote sampling.


                                                    Complete Data Traceability

                                                Saves raw images of thousands of particles, enabling reanalysis and trend comparison. Complies with ASTM, ISO, and NAVAIR particle count standards.

Specification	Value
Size Range	1 – 3000 µm (model-dependent)
Shape Parameters	> 30 metrics including aspect ratio, circularity, convexity, etc.
Imaging/display	High-speed dynamic image capture; thumbnail gallery
Sample Modes	Dry powder & wet suspension (interchangeable sample cells)
Portability	Rugged carry-on case with battery & cooling
Analysis Time	Minutes per sample
Software Features	Correlation plots, overlay comparison, pass/fail logic
Data Storage	Raw image files + summary statistics
Standards Compliance	ASTM, ISO, NAVAIR particle standards
Operation Modes	Field (battery) & lab bench operation
